Advanced Parking Guidance System Ultrasonic Sensor Based With LED RG Indicator

  • 1
  • 2
  • 3

Ultrasonic Detector - Material : ABS engineering plastics

Node Controller - Communication Interface : 1 CAN and 4 RS485 interfaces (RS485 distance ≤ 400m)

Ultrasonic Detector - Working Voltage : 24V

Ultrasonic Detector - Height Adjustment Range : 1.5 - 5m

Node Controller - Processor Type : Imported 32 - bit ARM processor

Node Controller - Single-channel Node Capacity : 32 devices

Brand Name : JUTAI

Model Number : JTNP-ULS

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay

Supply Ability : 1000 pieces per month

Delivery Time : 5 - 8 working days

Packaging Details : Cartoon

Contact Now

Advanced Parking Guidance System Ultrasonic Sensor Based With LED RG Indicator
Product Overview
The JTNP-ULS Parking Guidance System by JUTAI is a state-of-the-art solution designed to revolutionize parking management. It provides seamless and efficient parking experiences in various environments by leveraging advanced ultrasonic detection technology.
Advanced Parking Guidance System Ultrasonic Sensor Based With LED RG Indicator
Key Features
  • Advanced Ultrasonic Detection: High-precision detectors with 1.5-5m height range and 30m visual distance, constructed with durable ABS engineering plastics
  • Efficient Space Management: Real-time information reduces search time and improves parking lot efficiency
  • Energy-Efficient Lighting Control: Energy-saving switches reduce electricity consumption and operational costs
  • Comprehensive Data Analytics: Detailed statistics on parking space utilization and vehicle flow patterns
  • Intuitive User Interface: User-friendly displays ensure easy navigation for all drivers
Application Scenarios
Suitable for commercial centers, office complexes, airports, and residential areas. Customizable for small-scale parking lots or large multi-level facilities.
Product Specifications
Advanced Parking Guidance System Ultrasonic Sensor Based With LED RG Indicator
System Components
Component Description
Ultrasonic Detector Mounted above parking spaces with 1.5-5m height range, 30m visual distance. ABS construction, 24V working voltage, 8-level detection adjustment with anti-interference capabilities.
Node Controller 32-bit ARM processor, industrial-grade design. 1 CAN and 4 RS485 interfaces, 32-device capacity. AC220V power, ≤2W consumption. Operating range: -40°C to +85°C.
Central Controller High-performance 32-bit ARM platform with embedded real-time OS. Ethernet communication, 2 CAN buses. Core system processor for data management.
Advanced Parking Guidance System Ultrasonic Sensor Based With LED RG Indicator

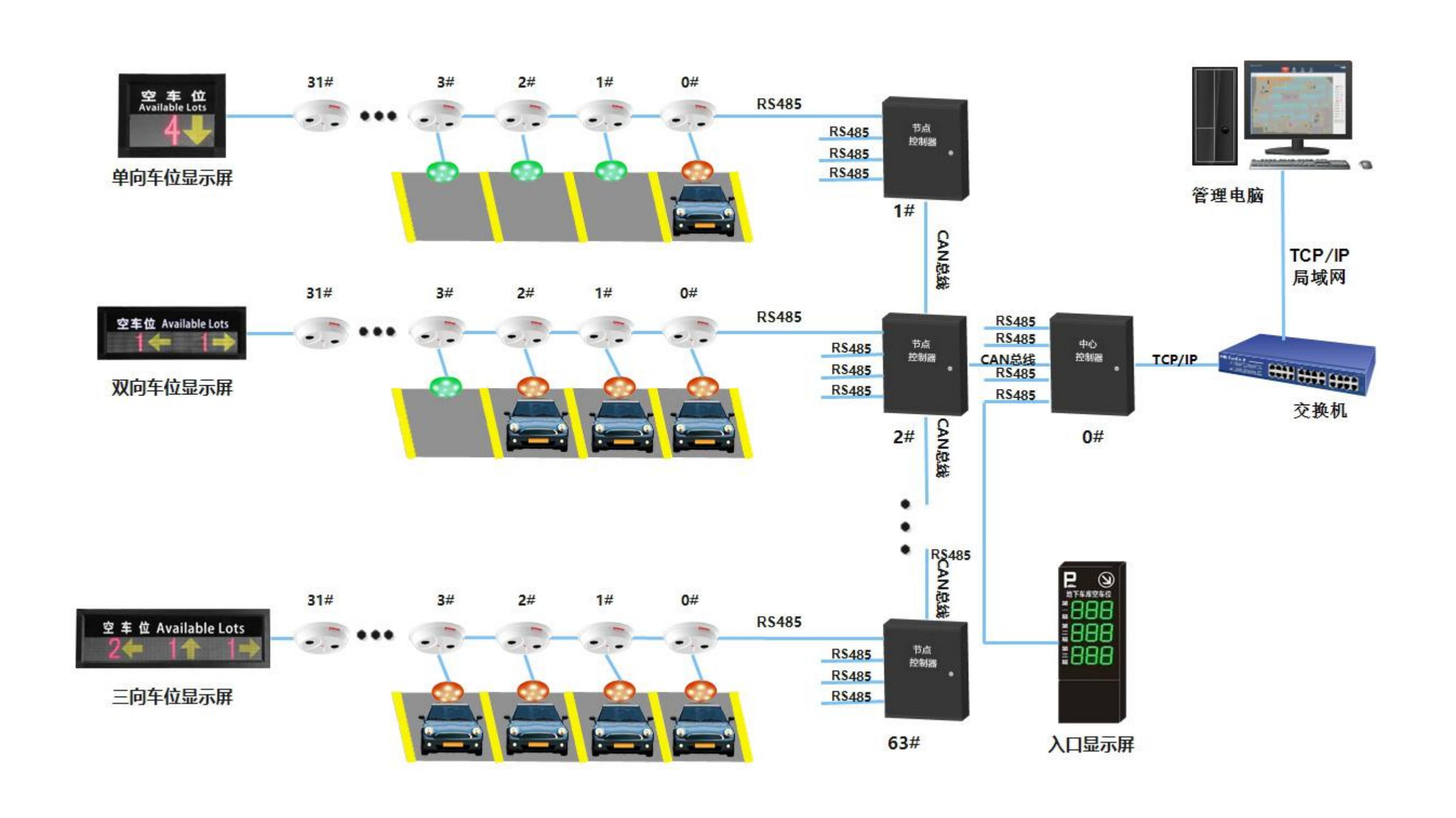

Wiring Diagram
Illustrates connections between ultrasonic detectors, node controllers, central controller, and other components for proper installation and configuration.
Advanced Parking Guidance System Ultrasonic Sensor Based With LED RG Indicator
Installation Instructions
  1. Ultrasonic Detector Installation: Mount detectors above parking spaces at 1.5-5m height with proper alignment and connections
  2. Node Controller Setup: Install in suitable location, connect to detectors using communication interfaces, configure parameters
  3. Central Controller Installation: Position centrally, connect to node controllers and host computer, configure system settings
System Operation
  1. Data Collection: Ultrasonic detectors monitor parking spaces and transmit occupancy data
  2. Data Transmission: Node controllers aggregate data and send to central controller
  3. Data Processing and Display: Central controller processes data and updates guidance displays in real-time
  4. User Interaction: Drivers follow visual cues to navigate to available parking spaces
Troubleshooting
  • Connection Issues: Check wiring connections, cable integrity, and communication settings
  • Detector Malfunction: Verify installation height, alignment, check for obstructions, recalibrate or replace if needed
  • Display Problems: Check connections to central controller and verify display settings
Maintenance and Warranty
  • Regular Maintenance: Periodically inspect components for damage, clean detectors, ensure proper ventilation
  • Warranty Information: Standard warranty included - refer to documentation for coverage details
